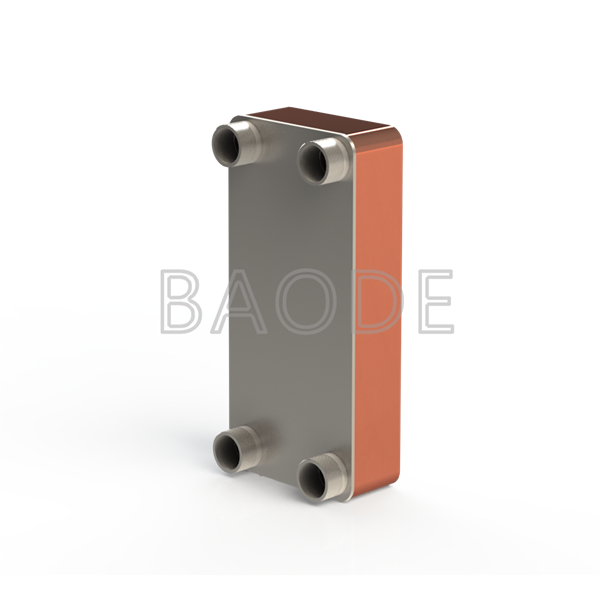

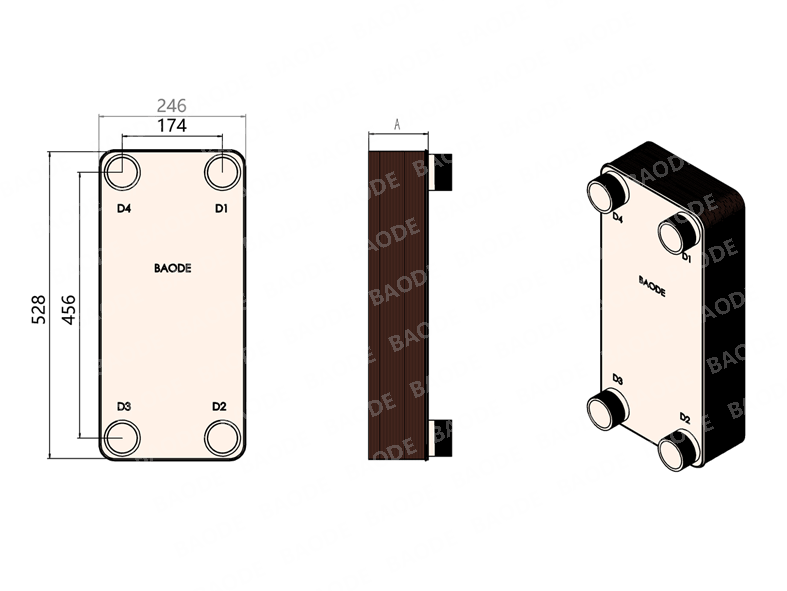

BL120
 |
 |
|||
| Model Details | Model | BL120 | ||
| Flow Pattern | parallel |  |
||
| Weight (kgs) | 7.2+0.52N | Approval |
UL, CE, BV, DNV, GL, ISO9001, ISO14001 |
|
| Max Flow (m3/h) | 42 | Max Pressure (bar) | 30 / 45 | |
| Plate Material | SS 304 / SS 316L | Max Temperature ℃ | 200 | |
| Conneciton Material | SS 304 | Min Temperature ℃ | -190 | |
| Brazing Material | Copper / Nickle | Packing | Individual box / Polywood box | |
| Connection Type | Thread, Solder, Flange | Mount Bracket（Optional） | Studs, Brazcket, Feet | |
| Max Connection Size | 2‘’ | |||
| Freon | R22, R401, R407, R515A | |||
 |
||||
