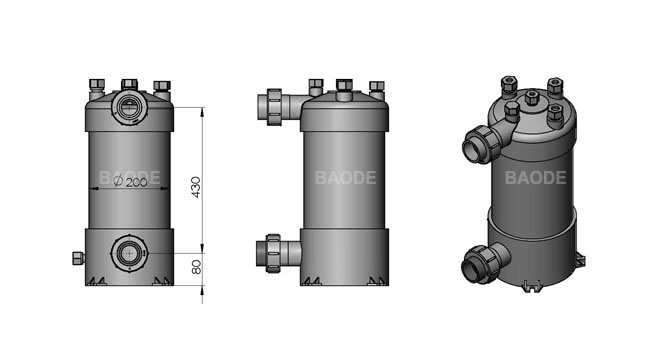

PVX300

BAODE heat exchangerBAODE heat exchanger

Model Details   Model PVX300
Normal Capacity 30 KW   Approval UL
Water Flow (M3/h) 14

ISO9001, ISO14001
Shell Material PVC   Shell Side Max Pressure (bar) 8
Tubes Material Ti   Tube Side Max Pressure (bar) 45
Connection Type Thread   Max Temperature ℃ 100
Water side Connection Size (Pool) 2''   Min Temperature ℃ -20
Ti Tube side connection (Freon) 12.7/ 19   Packing Individual box / Polywood box
