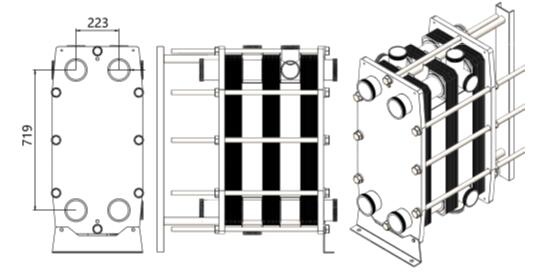

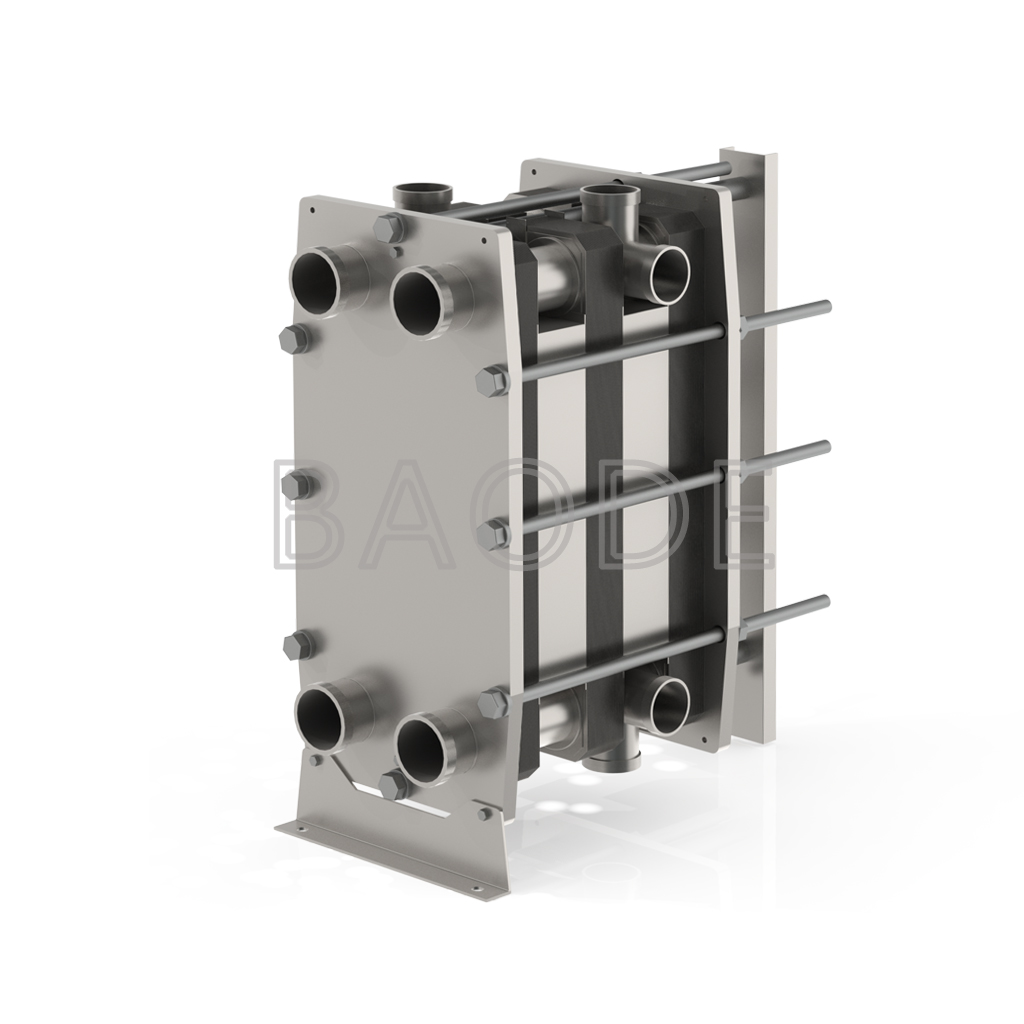

FH100
 |
 |
|||
| Model Details | Model | FH100 | ||
| Flow Pattern | Paralle | Channel Angel | D 120° / X 60° | |
| Channel Depth | FH100B 2.6mm / FH100H 4mm | Approval |
UL, CE, |
|
| Temprature Program ℃ | 5>55>68.5>74>60.5>10.5>4 | Frame Material | Stainless clad | |
| Plate Material | Stainless/ Ti | Max pressure (bar) | 10 | |
| Plate Thickness mm | 0.5/ 0.6 | Max Temperature ℃ | 110/140 | |
| Gakset Material | NBR/ EPDM | Min Temperature ℃ | -10 | |
| Connection Type | DIN, Tri-CLAMP | Packing | Polywood Box | |
| Connection Size | 50 MM | |||
